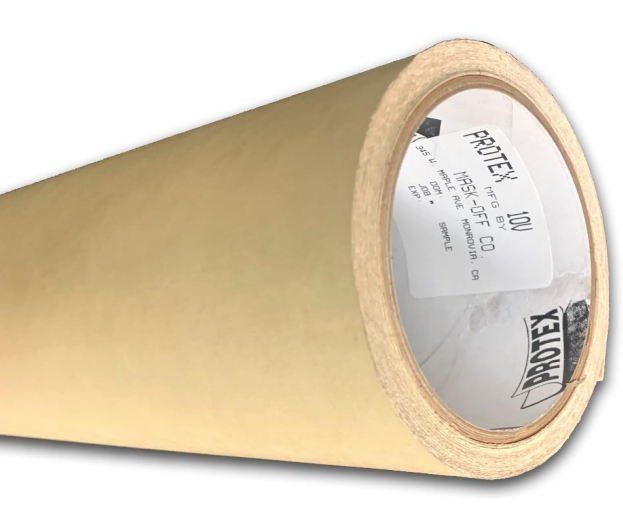

PROTEX 10V - Paper Protection (Mask-Off)

PROTEX 10V - Paper Protection (Mask-Off)

$181.09 USD
$181.09 USD
Sale Sold out
Shipping calculated at checkout.
Size

Custom Converting & Slitting Available. Call 407-704-8275


PROTEX 10V Is A 10 Mil Latex Saturated Paper

AKA “Elephant Hide / Bull Hide”

10V Has A Vinyl Coating On One Side To Increase Its Abrasion Resistance

Used In The Protection Of Acrylic & Polycarbonate Windows, Canopies & Windshields

Protex 10V Is Also Used For Bare Metal & Painted Surface Protection Where Added Abrasion Resistance Is Required

A Liner Allows The Product To Be Die-Cut If Desired.

Application Surface: Metals, Plastics, Glass, Painted Surfaces

Protex 10V Single-sided Paper with Natural Latex Adhesive

Meets: Boeing, BAC 5034, Type IV, Class I, Grade A
            NSN 7510-01-121-8267

AEROTAPE® Can Special Order Other Sizes Of Protex 10V.





This product is not intended for fly-away applications.

Protex 10V "Elephant Hide/Bull Hide" Linered, Latex Saturated and Vinyl Coated Kraft Surface Protection Tape; 60 yards standard roll length

  • Roll Size:  12” x 60 yards per roll; packed four (4) rolls per Case.
  • Roll Size:  24” x 60 yards per roll; packed two (2) rolls per Case.
  • Roll Size:  48” x 60 yards per roll; packed two (1) rolls per Case.
  • Documentation:  Manufacturer’s C of C Provided
  • Manufacturer’s Shelf Life:  Twelve (12) months from DOM

Specifications For Protex 10V

Boeing BAC 5034, Type IV, Class I, Grade A, NSN 7510-01-121-8267

Applications

INDUSTRIES: Aerospace

APPLICATION: Surface Protection

APPLICATION DESCRIPTION:

Aircraft window protection where light transmission is not required. Acrylic and polycarbonate windows, canopies and windshields. Also used on bare metal and painted surfaces where added resistance to abrasion is required

APPLICATION NOTES:

Application surface: Metals, Plastics, Glass, Painted Surfaces, Pre-Mask

Technical Data

Mask-Off Protex10V

MATERIAL DESCRIPTION:

ADHESIVE TYPE: Pressure-Sensitive
CONSTRUCTION: Single Coated
LINER: Flat

TECHNICAL DATA:

ADHESIVE LAYER: Rubber
ADHESIVE LAYER DESCRIPTION: Natural Latex Rubber
BACKING/CARRIER MATERIAL: Paper
ADHESION TO STEEL: oz/inch width 30-40 (-5/+7) (At time of manufacture) PSTC-1 (Modified)
TENSILE STRENGTH: lbs/inch, M.D. 35-45 min
ELONGATION: % M.D. 3.0 min
TEMPERATURE OPERATING: 150° for 1 hour, No heat



Protex 10v Tech Data Sheet
