Patco

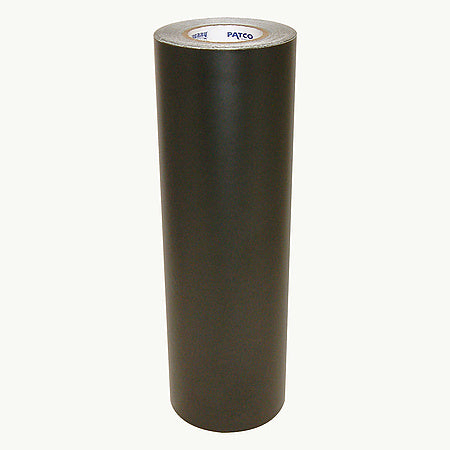

Patco 1800 - Moisture Barrier Tape
Patco 1800 - Moisture Barrier Tape
Regular price
$256.09 USD
Regular price
Sale price
$256.09 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Custom Converting & Slitting Available. Call 407-704-8275
Documentation: Factory C of C & Burn Test Certificate to F.A.R. 25.853a Burn Test Standard
►Provided At No Charge◄
Black Mylar Tape
Moisture Barrier Tape
Patco® 1800 Is An Economical Moisture Protection Tape.
Aircraft Corrosion Inhibitor Tape.
Patco 1800 Is Flame Retardant: Meets FAR 25.853(a).
Moisture Barrier Tape For Interior Aircraft Sections Exposed To Moisture, Such As Galleys, Lavatories & Entry Ways.
Conformable.
Patco 1800 Is Compatible With Most Sealants.
Forms A Permanent Bond.
Patco 1800 Is Also Referred To As "Black Mylar Tape".
Patco 1800 Is An aircraft corrosion inhibitor moisture barrier tape designed for water seal aerospace applications in main cabin wet areas (galleys, lavatories, & entryways). Features of Patco 1800FR include: tough, conformable and moisture resistant; permanent and flame retardant; allows wide width usage; helps prevent corrosion on floor structures; will not delaminate; meets FAR requirements; compatible with most sealants; fast application; and can be die-cut to various shapes.
Documentation Provided: Factory C of C and Burn Test Certificate to FAR 25.853a
Patco 1800 Black, Flame Retardant, Linered PVC (Vinyl) Tape
(aka “Black Mylar” and/or “Galley Tape”); Meets:
- FAR 25.853(a) Appendix F for Interior Aircraft Use;
- Fokker FK-05-159 & FK05-160
- Bombardier 91-25-1; 91-25-2; 9125-3; 91-25-4;
- 91-25-5; 9-25-6
Technical Information
Patco 1800 Flame Retardant Galley Tape
Adhesive: acrylic Carrier/Backing: Polyvinyl Chloride (PVC) filmRelease Liner: 53# coated Kraft paperThickness: 9.5 mils (carrier, adhesive) 8.5 mils (carrier) Adhesion: 50 ounces per inch (to stainless steel test panel)Tensile Strength: 25 pounds per inch (longitudinal)Application Temperature: 50°F to 120°FService/Operating Temperature: -40°F to 200°FElongation: 200%Puncture Resistance: 12 poundsAbrasion/Wear Index: 34Meets FAA - FAR 25.853 (a); Fokker - Fk05-159 and Fk05-160; Bombardier/deHavilland - DSC 91-25-1,DSC 91-25-2, DSC 91-25-3 B, DSC 91-25-4, DSC 91-25-5, DSC 91-25-6 Core: 3" diameter plastic
Patco 1800FR Tech Data Sheet
